Mobility

LION Smart provides high-performance power batteries delivering greater range, efficiency, and safety for electric vehicles and commercial fleets.

Storage

LION Smart’s energy storage solutions are reliable and safe storage systems which enable best cost for electricity over lifetime for industrial and gird applications.

Modularity & Customization

Our modular battery systems offer maximum flexibility and efficiency, allowing manufacturers to tailor performance and integration across a wide range of vehicle applications.

Immersion-Cooled Battery Techbology

Our immersion-cooled battery technology enables superior thermal performance, efficiency, and safety—ideal for the demands of next-generation electric vehicles.

Mobility Products

Our battery pack technology meets the highest automotive EV standards for safety, quality and reliability. The products are ideal for electric trucks, buses and off-highway vehicles.

What’s Holding E-Mobility Back?

Electrification is reshaping the mobility sector, but it comes with tough challenges: OEMs must deliver more range, faster charging, and smarter energy management—all while minimizing weight and system complexity. Standard battery systems often fall short when it comes to performance, flexibility, and integration into modern vehicle architectures.

Follow a manual added linkFollow a manual added linkFollow a manual added link

LION Smart Powers the Next Generation of Electric Mobility

LION Smart addresses these challenges with a lightweight, modular battery pack designed for high efficiency and fast charging. Combined with intelligent battery management software, the system ensures optimal safety and performance. Its flexible design allows easy integration into a wide range of vehicle platforms, helping manufacturers drive e-mobility forward—faster and smarter.

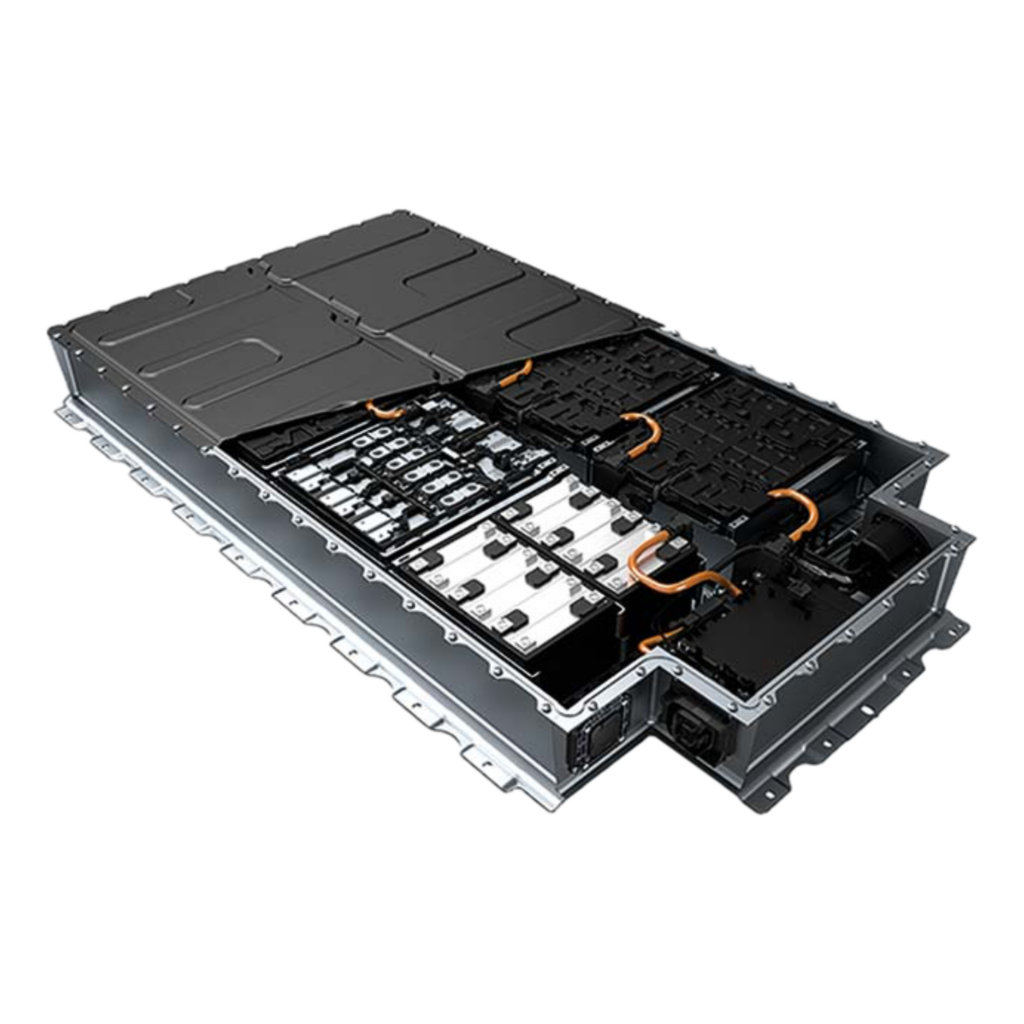

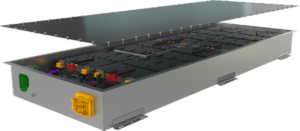

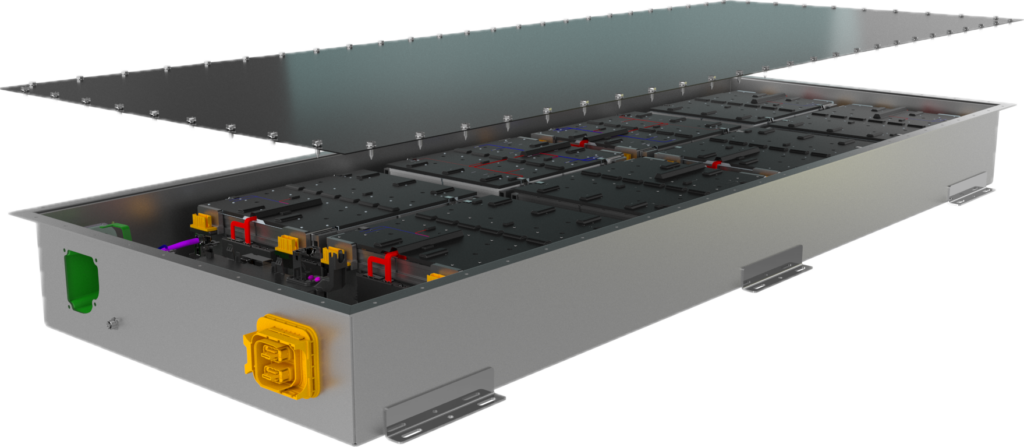

LION Smart Mobility 42

The LION Smart Mobility Power 42 is a ready-to-use, scalable battery system with high peak power, based on proven BMW i3 technology, ideal for 400V and 800V applications.

Key Features of LION Smart Mobility Power 42

  • Immediately Available: A standardized battery system ready for deployment.
  • High Peak Power: Capable of delivering high peak outputs and supporting fast charging.
  • Scalable Design: Connect up to 12 batteries via a gateway for a total capacity of up to 506 kWh, suitable for 400V and 800V architectures.
  • Proven Technology: Based on the BMW i3 battery, with over 1 billion kilometers driven per year.
  • Premium Components: Uses Samsung SDI NMC cells and high-quality electronic components, manufactured in Germany.
  • Easy Integration: Designed for seamless implementation into various applications.

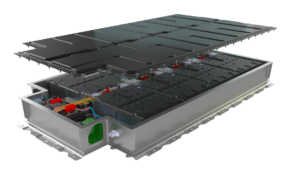

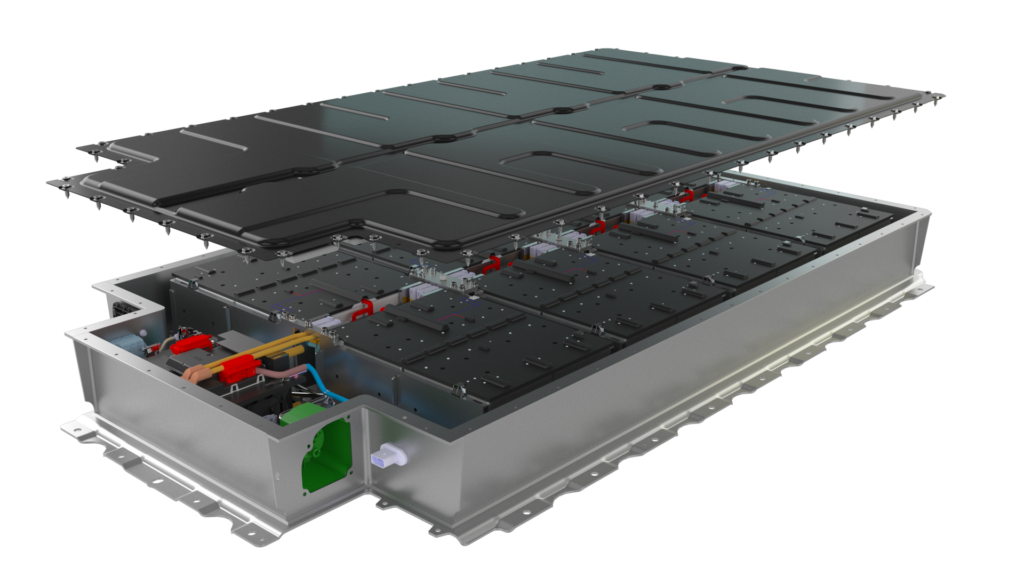

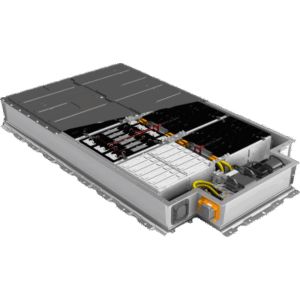

LION Smart Mobility Power 53

The LION Smart Mobility Power 53 is a robust, high-energy battery system with certified safety and modular scalability, ideal for demanding mobility applications in 400V and 800V architectures.

Key Features of LION Smart Mobility Power 53

  • High Energy Capacity: Delivers 52.8 kWh per pack, suitable for heavy-duty applications.
  • Certified Safety: Equipped with an ISO 26262 ASIL C compliant BMS for maximum functional safety.
  • Thermal Management: Integrated liquid cooling and 1 kW electric heating ensure optimal performance in all conditions.
  • Scalable Architecture: Combine up to 12 packs via gateway to reach up to 634 kWh of total capacity.
  • Rugged Design: IP67 / IP6K9K protection class and robust aluminum housing for harsh environments.
  • Fast Charging Support: Optimized for rapid charging cycles and high power delivery.
  • Ready for Integration: Pre-validated and compliant with key standards including ECE R100, R10, UN 38.3.
  • Available from Q1/2025: Sample units ready for deployment and integration projects.

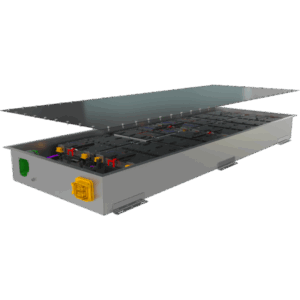

LION Smart Mobility Power 53 narrow

The LION Smart Mobility Power 53 narrow is a space-optimized, high-performance battery system designed for integration between or alongside ladder frames—ideal for e-Trucks, e-Buses, and off-highway vehicles in 400V and 800V architectures.

Key Features of LION Smart Mobility Power 53 narrow

  • Optimized Form Factor: Narrow 30” width design, suitable for US frame dimensions and tight installation spaces.
  • High Energy Output: 52.8 kWh capacity with peak power performance and fast charging compatibility.
  • Scalable System: Connect up to 12 batteries via gateway for up to 634 kWh total capacity.
  • Certified Safety: ISO 26262 ASIL C-compliant BMS and robust passive safety design.
  • Smart Integration: Standardized interfaces, software customization, and contact protection at pack level.
  • Premium Components: NMC cells and high-grade electronics ensure long life and reliability.
  • Thermal Management: Optional 1 kW electric heating and liquid cooling via water-glycol.
  • Rugged Protection: IP67 / IP6K9K ingress protection, compliant with ECE R100, R10, UN 38.3, ISO 16750.
  • Available Q1/2025: Sample units ready for early integration and testing.

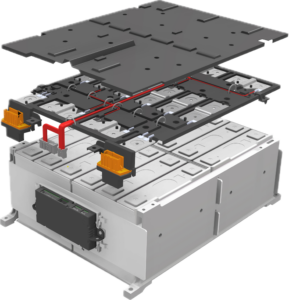

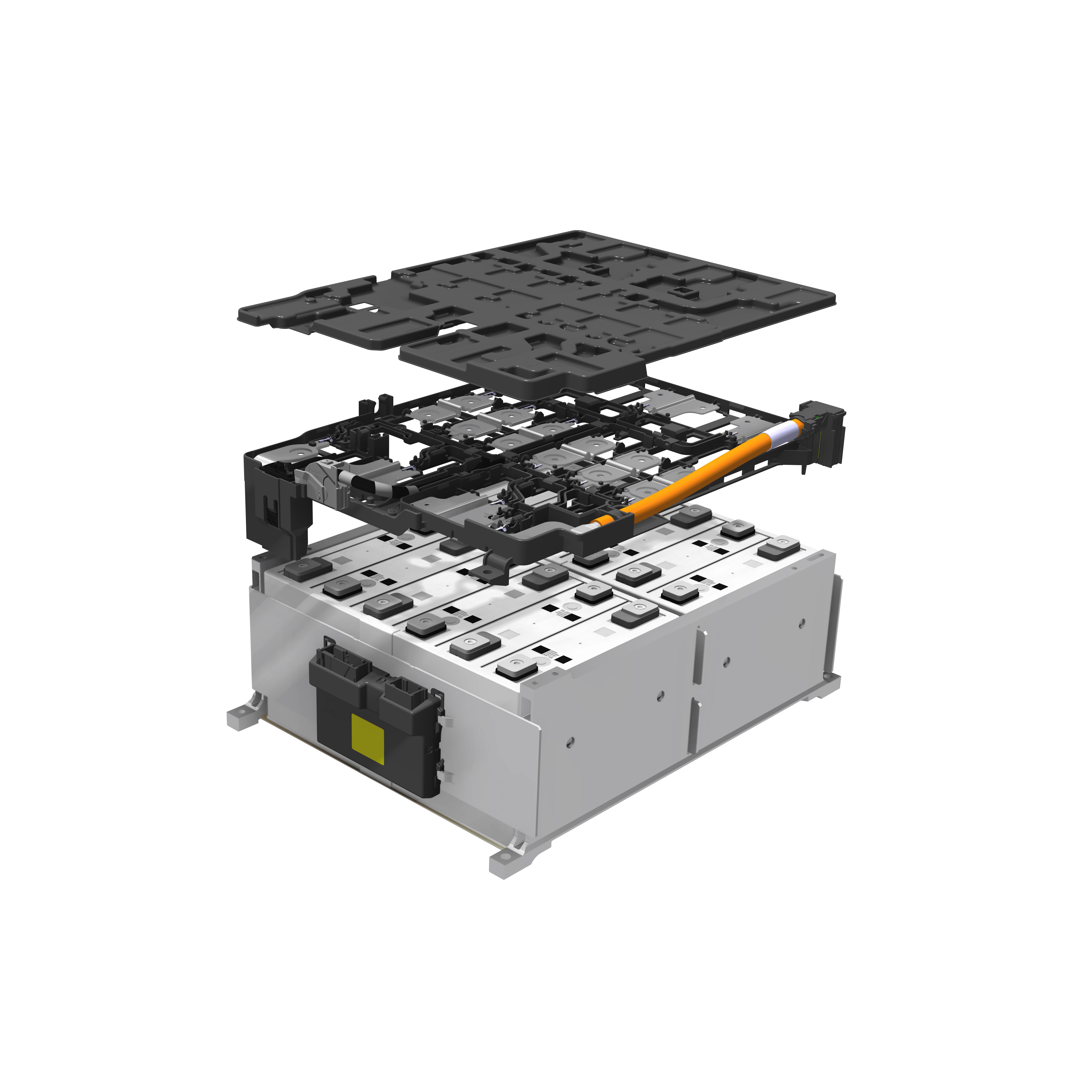

LION Smart Module Power 5.3

The LION Smart Module Power 5.3 is a compact, modular battery solution for 48V and 400V systems, combining high performance, certified safety, and flexible integration for scalable energy applications.

Key Features of LION Smart Module Power 5.3

  • Compact and Modular: 5.3 kWh energy content in a compact form factor (410 × 304 × 144 mm, ~30 kg), ideal for flexible layouts.
  • High Power Performance: 18.5 kW peak discharge power and 6.3 kW continuous charging capability.
  • Scalable Setup: Connect up to 8 modules in series for 400V architecture; up to 12 batteries via gateway for up to 506 kWh.
  • Certified Safety: Equipped with ASIL-certified BMS and robust passive safety structure.
  • Quality Components: NMC battery cells and high-grade electronics manufactured in Germany.
  • Easy Integration: Pluggable connectors, pre-mounted sensing harness, and touch-protected terminals.
  • Thermal Readiness: Prepared for both heating and cooling plate integration.
  • Standards Compliance: Fully compliant with UN 38.3, ISO 16750, and other industrial standards.
  • Immediately Available: Off-the-shelf and optimized for efficient shipping and installation.

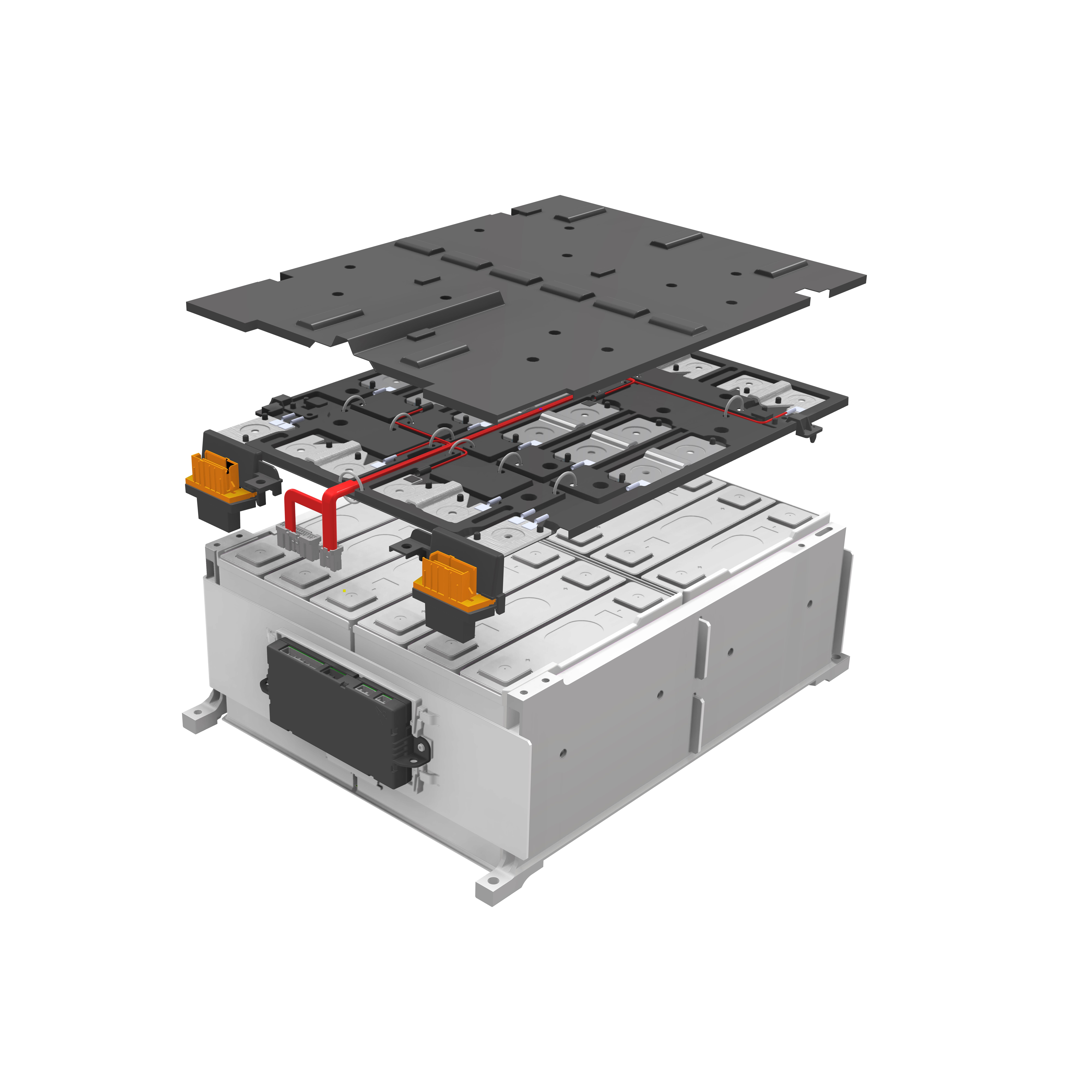

LION Smart Module Power 6.6

The LION Smart Module Power 6.6 is a compact, high-capacity battery module for 48V, 400V and 800V systems, offering fast charging, certified safety and modular scalability for demanding energy and mobility applications.

Key Features of LION Smart Module Power 6.6

  • High Energy Capacity: 6.6 kWh in a compact format (494 × 327 × 153 mm, ~42 kg), ideal for space-constrained systems.
  • Multi-Voltage Flexibility: Compatible with 48V, 400V, and 800V system architectures.
  • Fast Charging Ready: Supports high power input/output with 3.3 kW continuous charging and 22.1 kW peak discharge.
  • Scalable Configuration: Up to 8 modules in series; up to 12 packs via gateway for total system capacities of up to 634 kWh.
  • Certified Safety: ASIL-certified BMS and passive protection for maximum operational safety.
  • Smart Integration: Pluggable connectors, sensing harness, and touch-protected terminals included.
  • Thermal Integration Ready: Compatible with heating and cooling plates for advanced thermal management.
  • Reliable Components: Built with high-quality NMC cells and automotive-grade electronics.
  • Standards Compliant: Meets UN 38.3, ISO 16750, and additional industrial safety standards.
  • Available Now: Designed for fast deployment and easy integration across applications.

Storage Products

Our product portfolio for storage applications covers high power demand and long-life requirements. The products are ideal for

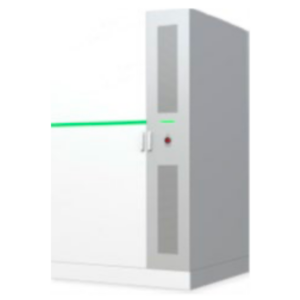

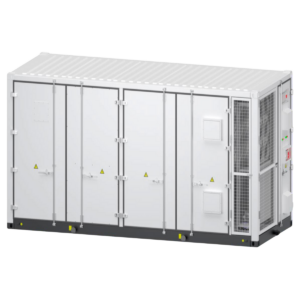

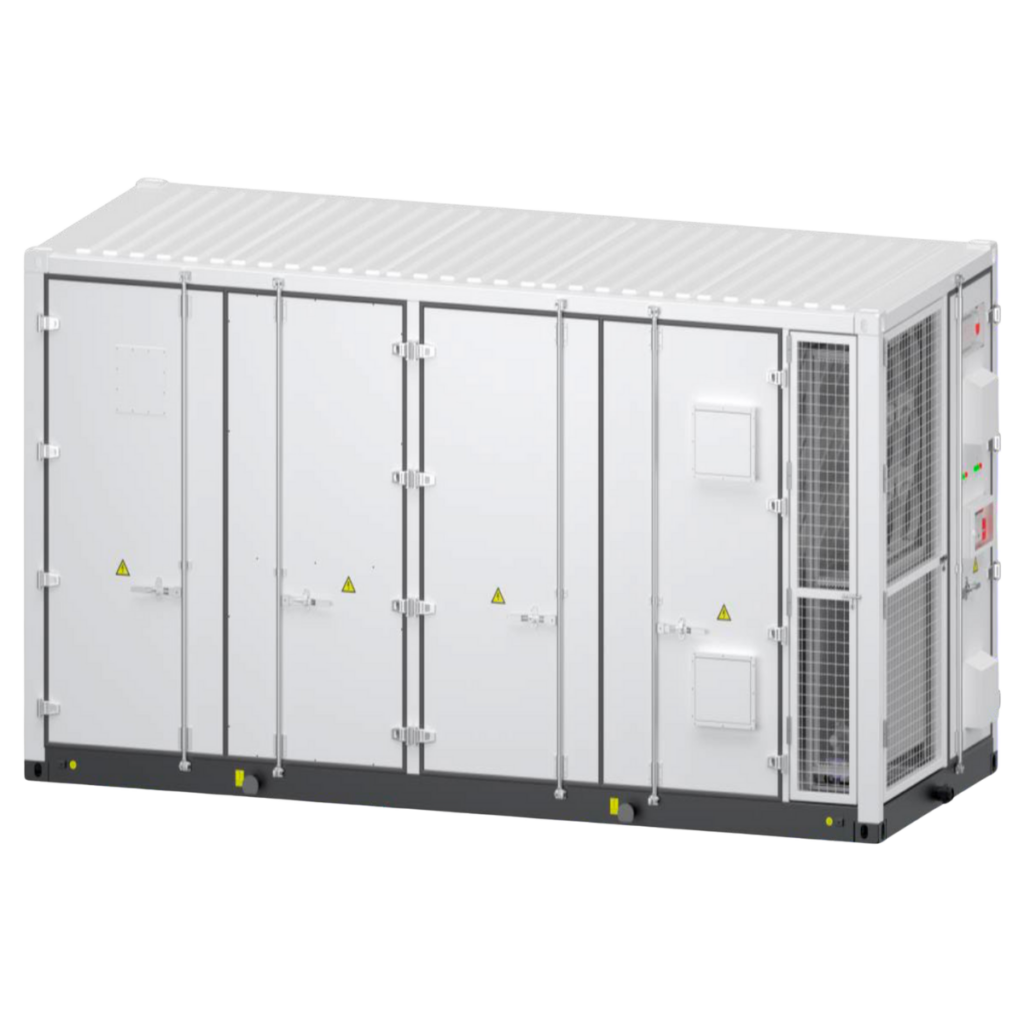

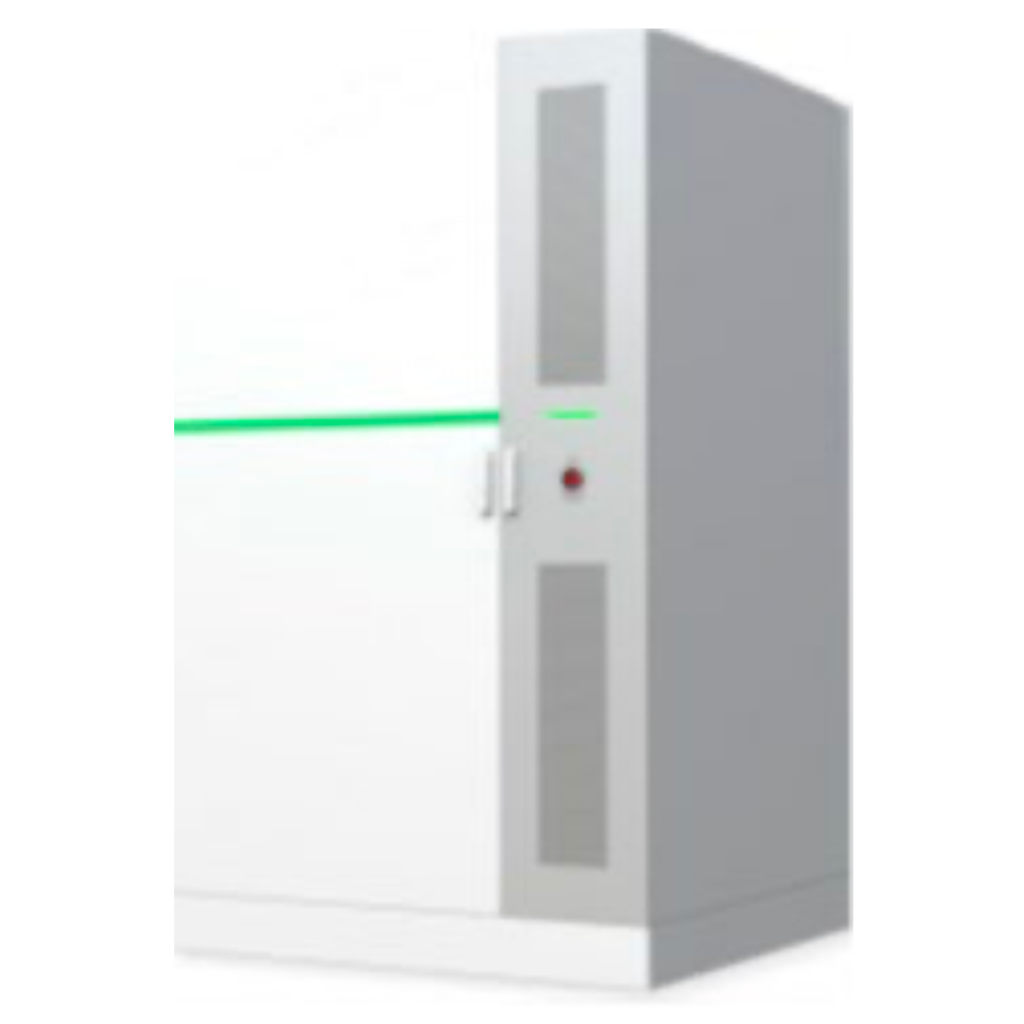

  • Commercial and Industry Storage
  • Uninterruptible power supply

The Energy Storage Challenge

As the demand for renewable energy grows, so does the need for efficient, scalable storage solutions. Many existing systems lack the flexibility, safety, and responsiveness required to support modern grids, commercial sites, and industrial applications. Energy must be stored smarter, managed better, and delivered exactly when needed.

Follow a manual added linkFollow a manual added link

LION Smart Delivers Reliable, Scalable Storage Solutions

LION Smart develops modular battery storage systems tailored for high performance, safety, and long-term reliability. With intelligent battery management and flexible system architecture, the solutions are easy to integrate and scale—ideal for applications ranging from renewable energy buffering to industrial peak shaving.

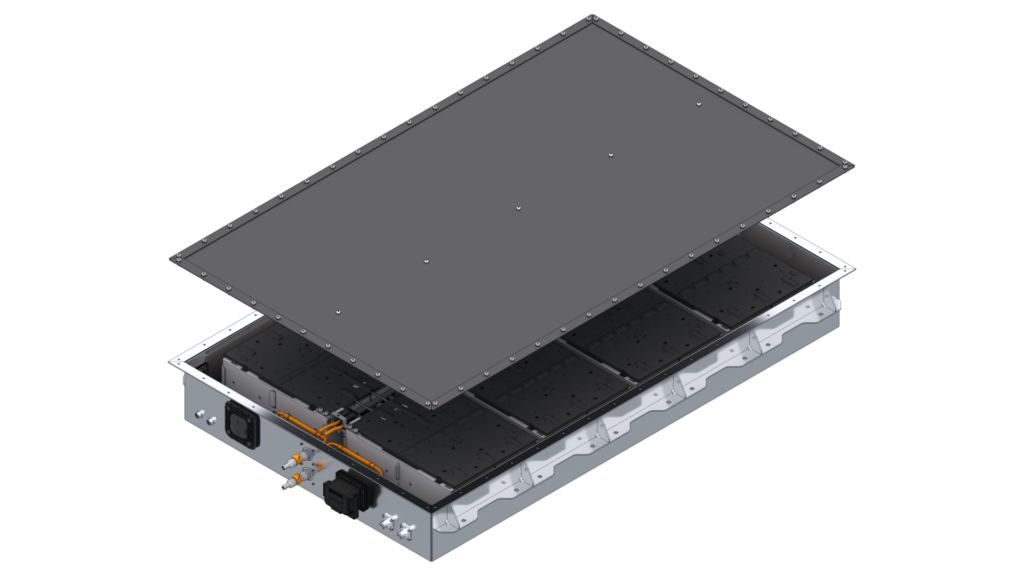

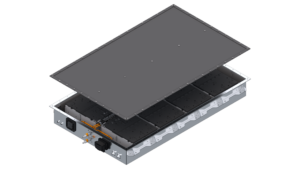

LION Smart Storage Long Life 33

The LION Smart Storage Long Life 33 is a modular LFP-based battery system designed for long-lasting, safe, and scalable energy storage across commercial, industrial, and backup applications—with a cycle life of over 8,000 and compatibility up to 1,500V.

Key Features of LION Smart Storage Long Life 33

  • Long Lifetime: Over 8,000 full cycles with 70% end-of-life capacity (0.5C/0.5C).
  • High Energy Content: 33.5 kWh nominal capacity per unit, based on LFP chemistry.
  • Scalable Architecture: Designed for modular system setups, including container stacks or single-pack use.
  • Voltage Flexibility: Supports system architectures from 300 V to 1,500 V; external BMS available.
  • Certified Safety: Compliant with UN 38.3, IEC 62619, IEC 61508 SIL 2, UL 1973, and UL 9540(A).
  • Robust Construction: IP67 / IP6K9K protection class and water-glycol cooling for demanding environments.
  • Efficient Integration: Optimized shipping quantities and customizable PDU configurations.
  • Available Q2/2025: Samples ready for deployment in industrial and stationary storage systems.

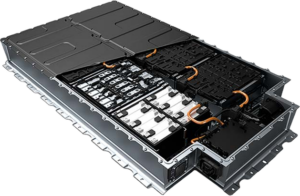

LION Smart Storage Power 42

The LION Smart Storage Power 42 is a high-performance, field-proven battery system designed for critical energy storage applications, offering fast charging, high peak power, and certified safety for both stationary and mobile use cases.

Key Features of LION Smart Storage Power 42

  • High Energy & Power: 42.2 kWh per unit with up to 60 kW peak and 40 kW continuous charging/discharging power.
  • Scalable Design: Connect up to 26 batteries via gateway for a total system capacity of up to 1,097 kWh.
  • Proven Technology: Based on the BMW i3 battery system with over 1 billion km driven per year.
  • Premium Components: Samsung SDI NMC cells and automotive-grade electronics ensure high reliability.
  • Fast Charging Ready: Supports high power input and rapid energy delivery.
  • Certified Safety: ASIL C compliant BMS, robust passive safety, and multiple safety standards met.
  • Standards Compliance: ECE R100, R10, UN 38.3, ISO 16750, IEC 62619, IEC 61508 SIL 2.
  • Thermal Management: 1 kW integrated heater and support for liquid cooling with R1234yf or R134a.
  • Rugged Housing: IP67 / IP6K9K protection, robust casing (1,662 × 964 × 174 mm, approx. 276 kg).
  • Available Now: Off-the-shelf and optimized for efficient shipping and integration.

LION Smart Storage Power 53

The LION Smart Storage Power 53 is a high-capacity, high-performance battery system designed for stationary and mobile storage applications, offering fast charging, certified safety, and flexible system integration—fully compatible with the Power 42 platform.

Key Features of LION Smart Storage Power 53

  • High Energy Content: 52.8 kWh nominal / 47.4 kWh usable per unit, NMC chemistry.
  • Peak Power Ready: Supports high peak power and fast charging for critical energy use cases.
  • Backward Compatible: Shares interfaces and dimensions with the LION Smart Storage Power 42.
  • Scalable Architecture: Up to 12 batteries per system via gateway, for total capacity of 634 kWh.
  • Certified Safety: ISO 26262 ASIL C and IEC 61508 SIL 2 certified BMS, robust passive protection.
  • Thermal Management: Optional 1 kW heater and direct refrigerant cooling (R1234yf, R134a, water-glycol).
  • Easy Integration: Contact protection, standardized interfaces, and customizable software.
  • Rugged Housing: IP67 / IP6K9K protection; dimensions: 1,662 × 964 × 174 mm; approx. 280 kg.
  • Proven Standards Compliance: ECE R100, R10, UN 38.3, ISO 16750.
  • Available Q1/2025: Sample units ready for integration and testing.

LION Smart Module Long Life 4.2

The LION Smart Module Long Life 4.2 is a compact LFP battery with over 8,000 cycles, built for scalable storage systems up to 1,500V in demanding stationary and industrial applications.

Key Features of LION Smart Module Long Life 4.2

  • Long Lifetime: >8,000 full cycles with 70% end-of-life capacity (0.5C/0.5C).
  • Energy Content: 4.2 kWh nominal, based on LFP chemistry.
  • Voltage Range: Nominal 38.4 V; systems up to 1,500 V possible with external BMS.
  • Flexible Integration: Modular setup with customizable PDU and optional geometries.
  • BMS Integration Ready: Sensing harness with 4 temperature sensors and voltage monitoring.
  • Thermal Preparedness: Interface for heating and cooling plates.
  • Compact Format: 410 × 304 × 144 mm, approx. 30 kg.
  • Robust & Safe: Touch-protected terminals and proven components, made in Germany.
  • Standards Compliant: UN 38.3, ISO 16750.
  • Available Q4/2024: Sample modules ready for early testing and integration.

LION Smart Module Power 5.3

The LION Smart Module Power 5.3 is a compact, modular battery solution for 48V and 400V systems, combining high performance, certified safety, and flexible integration for scalable energy applications.

Key Features of LION Smart Module Power 5.3

  • Compact and Modular: 5.3 kWh energy content in a compact form factor (410 × 304 × 144 mm, ~30 kg), ideal for flexible layouts.
  • High Power Performance: 18.5 kW peak discharge power and 6.3 kW continuous charging capability.
  • Scalable Setup: Connect up to 8 modules in series for 400V architecture; up to 12 batteries via gateway for up to 506 kWh.
  • Certified Safety: Equipped with ASIL-certified BMS and robust passive safety structure.
  • Quality Components: NMC battery cells and high-grade electronics manufactured in Germany.
  • Easy Integration: Pluggable connectors, pre-mounted sensing harness, and touch-protected terminals.
  • Thermal Readiness: Prepared for both heating and cooling plate integration.
  • Standards Compliance: Fully compliant with UN 38.3, ISO 16750, and other industrial standards.
  • Immediately Available: Off-the-shelf and optimized for efficient shipping and installation.

LION Smart Module Power 6.6

The LION Smart Module Power 6.6 is a compact, high-capacity battery module for 48V, 400V and 800V systems, offering fast charging, certified safety and modular scalability for demanding energy and mobility applications.

Key Features of LION Smart Module Power 6.6

  • High Energy Capacity: 6.6 kWh in a compact format (494 × 327 × 153 mm, ~42 kg), ideal for space-constrained systems.
  • Multi-Voltage Flexibility: Compatible with 48V, 400V, and 800V system architectures.
  • Fast Charging Ready: Supports high power input/output with 3.3 kW continuous charging and 22.1 kW peak discharge.
  • Scalable Configuration: Up to 8 modules in series; up to 12 packs via gateway for total system capacities of up to 634 kWh.
  • Certified Safety: ASIL-certified BMS and passive protection for maximum operational safety.
  • Smart Integration: Pluggable connectors, sensing harness, and touch-protected terminals included.
  • Thermal Integration Ready: Compatible with heating and cooling plates for advanced thermal management.
  • Reliable Components: Built with high-quality NMC cells and automotive-grade electronics.
  • Standards Compliant: Meets UN 38.3, ISO 16750, and additional industrial safety standards.
  • Available Now: Designed for fast deployment and easy integration across applications.

Modularity & Customization

Modularity is a key advantage in modern battery system design, offering maximum flexibility and efficiency across a wide range of applications. Modular systems can be tailored to suit various vehicle types and use cases—from light commercial vehicles to heavy-duty platforms—enabling manufacturers to optimize performance and integration.

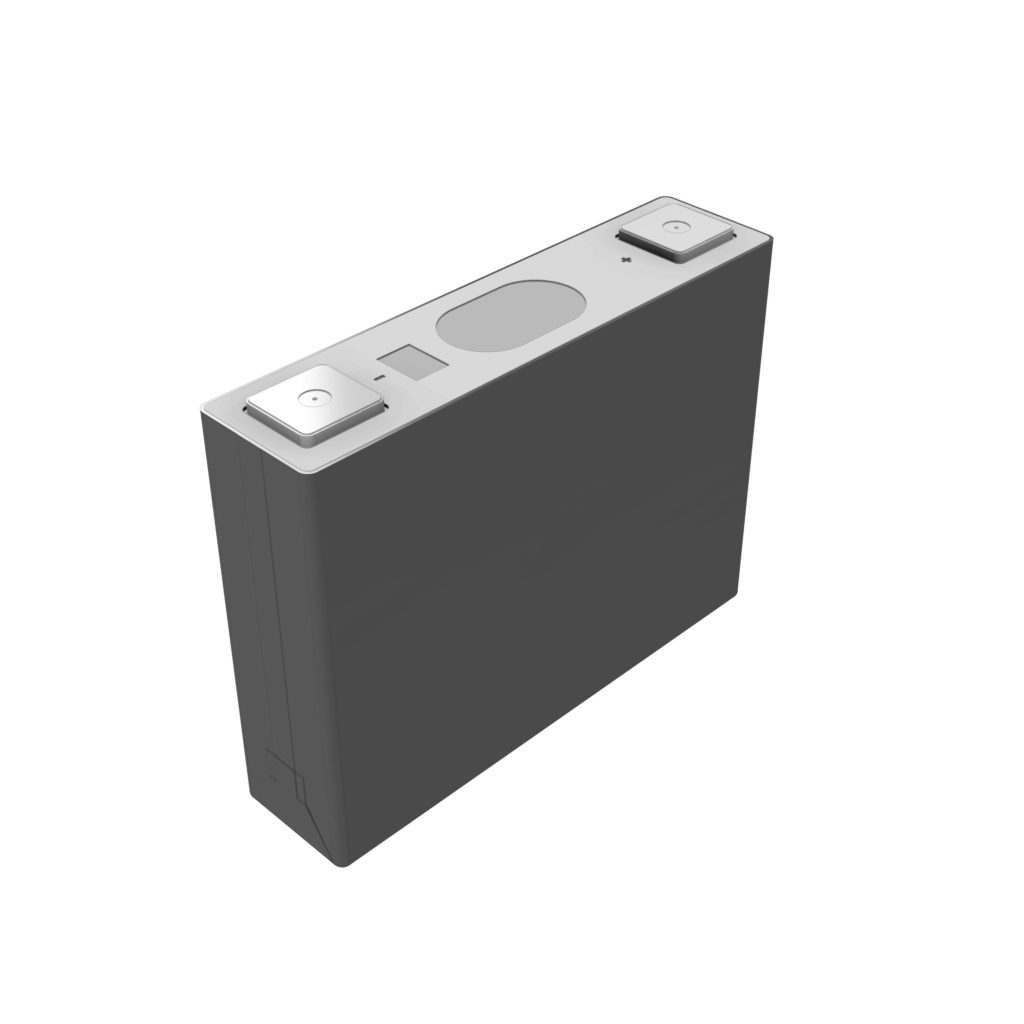

Cell

  • Our battery concept is based on prismatic cells
  • Custom-developed for LION Smart by SVOLT with increased  energy density

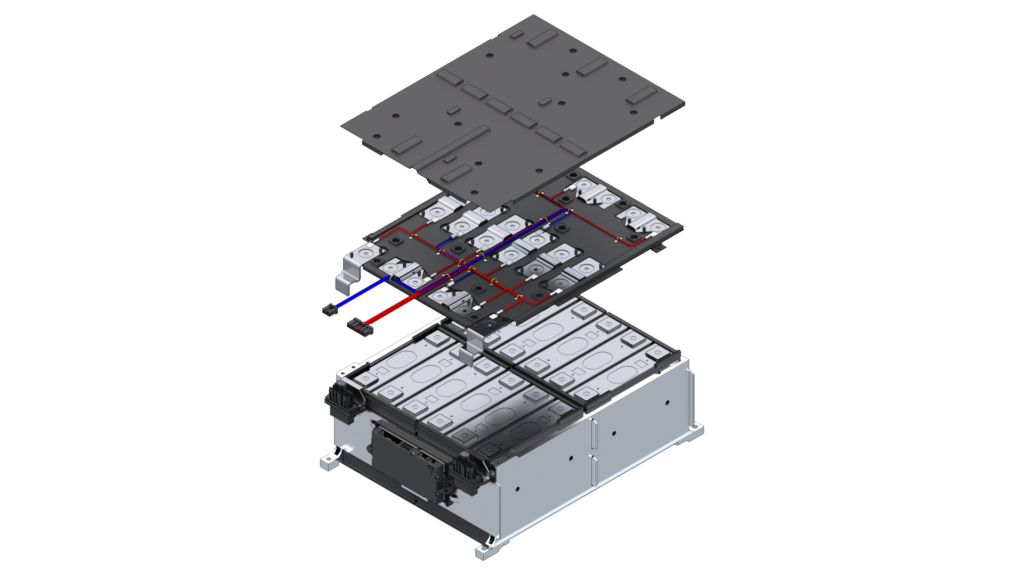

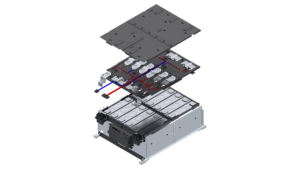

Module

  • Compatible with different cell chemistries
  • Upgradeability to higher energy densities
  • Available off-the-shelf for system integrators
  • Energy density 177Wh/kg (SDI NMC) // 217Wh/kg (SVOLT NMC+)

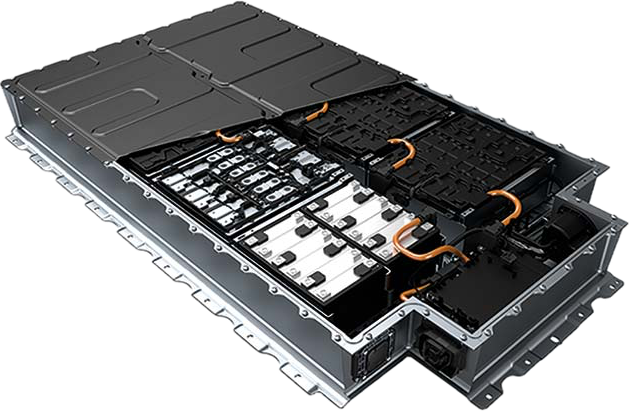

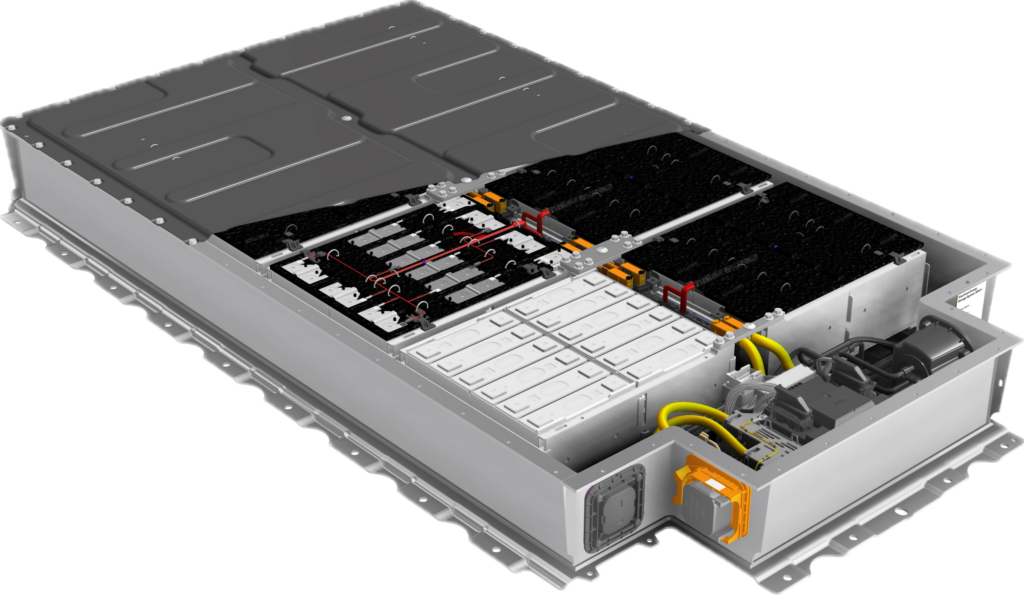

Battery Pack

  • Compatible to existing SE09
  • Water glycol* or direct refrigerant cooling
  • Optional: direct electric heating
  • Custom housing design possible for special applications
  • Energy Density
    153Wh/kg for SE09-042 (NMC)
    189Wh/kg for SE09-053 (NMC+)

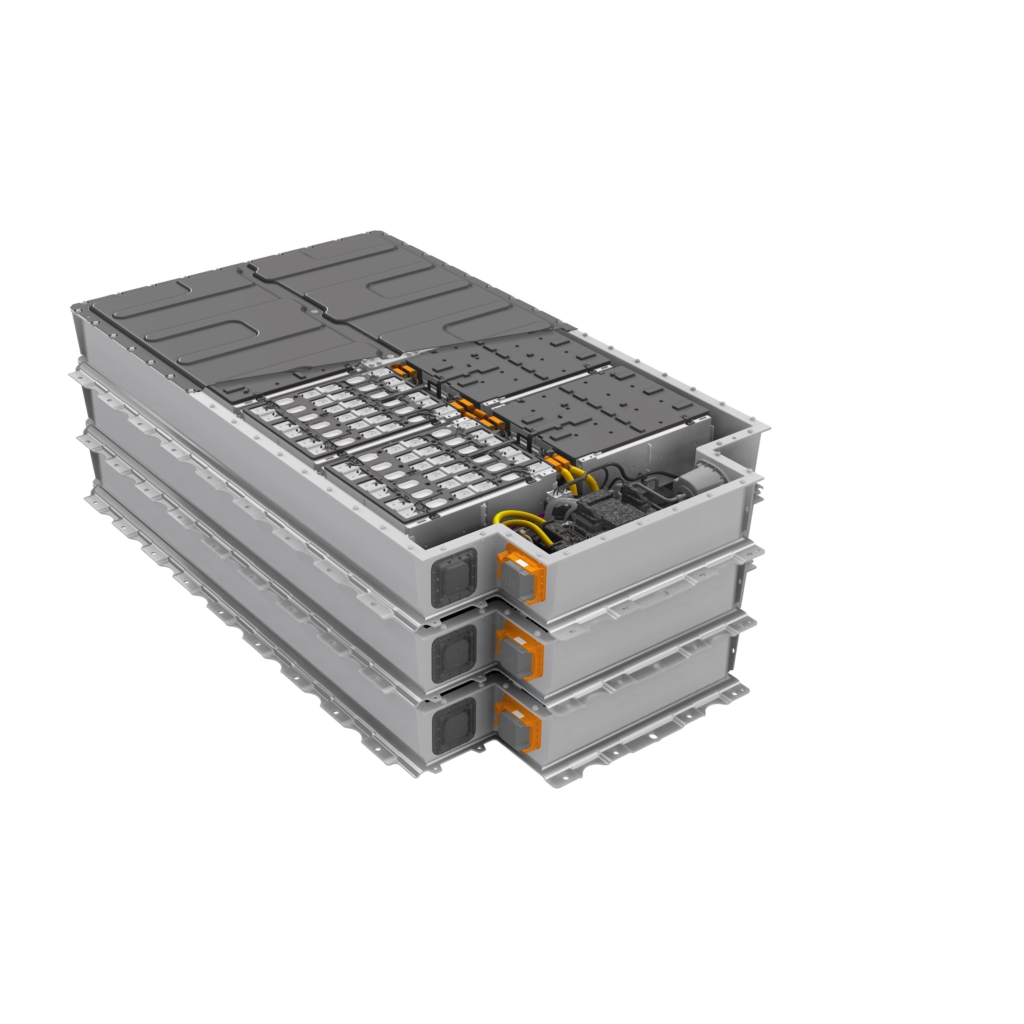

System Modularity

  • Series connection of 2x 400V batteries to 800V
  • Parallel connection of battery packs for increased mileage

Battery Pack Development

Modular Design / Building Blocks

LION Smart follows a building block approach and offers customized solutions:

Modular Design / Building Blocks:

  • BMS
  • Modules
  • Connectors
  • Housings
  • Cooling/Heating System

Reuse of existing components to create new battery designs / battery specifications to:

  • Increase speed
  • Reduce cost (ressources, testing, increase purchasing volumes, …)
  • Meet the customer´s requirements

Scalability

A crucial aspect of this flexibility is the scalability of the system’s voltage architecture:

Supporting both 400V and 800V configurations allows for seamless adaptation to different powertrain requirements, including high-performance applications with ultra-fast charging capabilities. This not only shortens development time and reduces costs but also ensures that battery solutions remain future-ready and competitive in evolving markets.

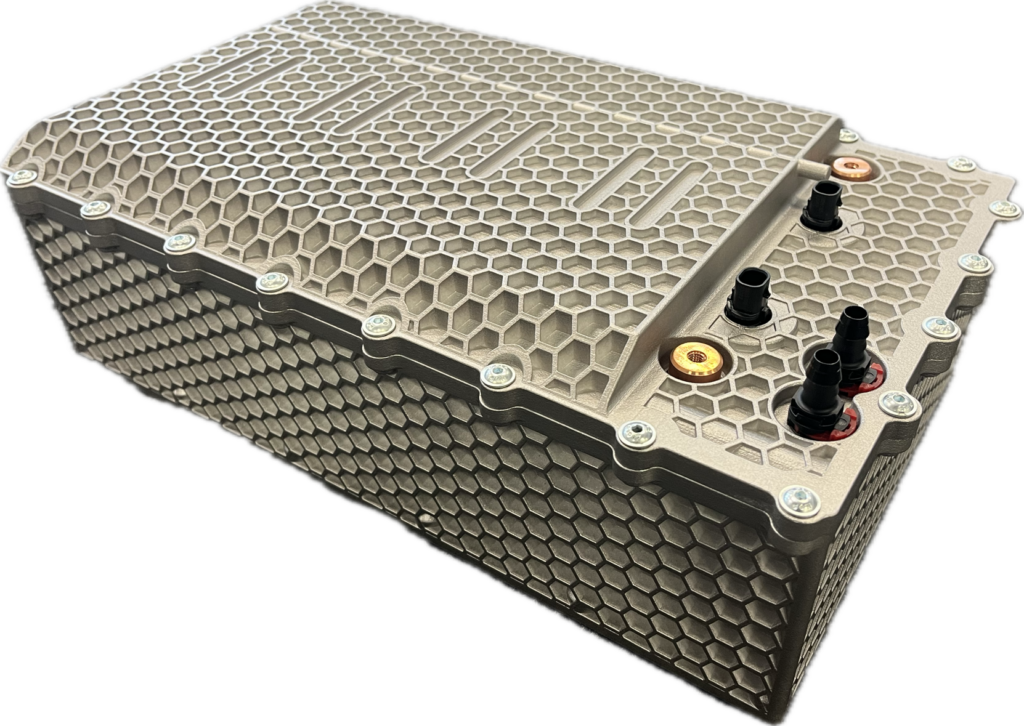

Immersion-cooled battery technology

What if your next Generation of Performance Hybrids …

would have 3x more electric power,

would show no derating race-tracking

and the battery would last a car life long?

Technological Excellence through Immersion Cooling and High-Speed BMS

Immersion-cooled battery technology improves thermal management by fully submerging battery cells in a dielectric fluid, enhancing the battery’s dynamic behavior, efficiency, and lifespan. Combined with high-speed Battery Management Systems (BMS) that include Electric Impedance Spectroscopy (EIS), real-time analytics, and precise state estimation, this innovation optimizes battery performance and ensures safety even under very high charging and discharging rates. As a result, LION Smart offers a unique solution tailored to the requirements of the next generation of vehicles.

Ideal for High-Performance Applications such as Sports Cars and Commercial Vehicles

Thanks to its outstanding thermal stability and ability to handle extremely fast charge and discharge cycles, this battery technology is particularly suited for applications with high power demands. Whether in high-performance sports cars or in electric trucks that must deliver consistent power under demanding conditions – the immersion-cooled solution from LION Smart excels in reliability, efficiency, and maximum safety. The capability of fast charging while maintaining thermal stability makes this technology the ideal choice for vehicle classes where power, availability, and endurance are critical.

LION Smart Immersion-Cooled Battery

The LION Smart Immersion-Cooled Battery offers maximum performance and safety for high-power electric vehicles, combining innovative immersion cooling technology with modular design and advanced battery management.

Key Features of LION Smart Immersion-Cooled Battery

  • Innovative Cooling Technology: Homogeneous temperature distribution with a minimal ΔT < 3.5K, and ~38 cm² active cooling surface per cell.

  • Superior Safety Design: Dielectric coolant immersion reduces thermal propagation risk; each cell protected with individual fuses for enhanced safety.

  • High Power Performance: Up to 53 kW pulse discharge power and 45 kW pulse charge power (10s); supports ultra-fast charging and discharging.

  • Modular and Scalable: Configurations from 64.8 V to 129.6 V nominal voltage; up to 800 V system architectures with multiple modules.

  • Advanced Battery Management System (BMS): Single Cell Module with Electrochemical Impedance Spectroscopy (EIS) for real-time State of Health (SOH) monitoring and lithium plating detection.

  • Compact and Lightweight: 369 × 216 × 122 mm size and <18.4 kg weight (oil-filled), optimized for high energy density (>320 Wh/L, >160 Wh/kg).

  • Flexible Chemistry: Battery cell chemistry agnostic (ready for 21700 and 46xx formats).

  • Automotive Application Ready: Ideal for BEV and PHEV super sports cars and high-power applications.

What makes our immersion cooled battery technology unique?

LION Smart has already successfully completed proof-of-concept projects with an OEM customer for Plug-in Hybrid Electric Vehicles (PHEVs), demonstrating best-in-class cooling performance and optimal thermal management. The BMS solution with single-cell monitoring, including impedance measurement (EIS), leverages advanced algorithms for precise determination of State-of-Health (SoH), State-of-Charge (SoC), and other state parameters (SoX). In addition, the system enables early detection of risks such as thermal runaway or lithium plating—crucial factors for ensuring safety and reliability. This solution is now ready for nomination and industrialization, offering OEMs a mature and future-proof technology platform.

Best-in-class cooling

  • Modular design for homogenous temperature distribution
  • Minimal temperature gradient within cell
  • Maximized active cooled contact surface – ~38cm²/cell in current design and setup
  • Immersion cooling allows fast-discharging and charging
  • “Single cell fuse” reduces propagation from internal short circuit

State of Health Calculation

  • Direct measurement of the impedance at a defined frequency and more precise determination of the internal resistance
  • Advantage: Direct measurement on the cell without external influences

Thermal Runaway Detection

  • Continuous monitoring of the impedance and immediate detection in the event of increased internal cell temperature
  • Advantage: Faster detection, as the heat does not have to diffuse through the cell (and possibly busbar) first


Lithium Plating Detection

  • Continuous monitoring of the impedance during charging
  • Advantage: If there are deviations in the impedance during charging, the charging power is immediately reduced. Plating is prevented.

Highlights of LION Smart BMS with Electric Impedance Spectroscopy (EIS)

Comparison of Control Approaches

Standard BMS LION Smart BMS
Electric Impedance Spectroscopy (EIS) Not available Measurement of each super-cell
State of Charge (SoC) ~30s for updated cycle 1s for updated cycle
State of Health/Power (SoH/SoP) >90% accuracy >95% accuracy
State of Energy (SoE) Predefined by
lookup-table
Direct measurement
Balancing Non-adaptable, HW fixed Full-adaptable, SW based
Thermal propagation detection Slow due to delayed
measurement System
Faster response time
(not yet implemented)
Lithium plating detection Not available Continuous monitoring
(not yet implemented)

We are ready for industrialization and scaling

Milestones

  • Implemented immersion cooled battery into vehicle in Tier1 project (BEV)
    Including relevant battery systems engineering processes
    Successful module and battery system validation, successful integration
    into test vehicles, successful test vehicle validation
  • Established small series production for 46p configuration (BEV)
    Produced > 900 supercells, > 60 modules
  • Implemented immersion cooled battery into vehicle in OEM Project (PHEV)
    Immersion cooled application in demanding vehicle environment
    400V // 32kWh // 330kW (5s) discharging power
    800V // 64kWh // >1.000kW (5s) discharging power // 600kW charging power
  • Established small series production for 10p configuration (PHEV)
    Produced > 800 supercells, > 70 modules
  • Ongoing Concept Projects
    Pushing the edge of technology…
  • Ready for nomination and industrialization

Experience you can rely on

With 250,000+ LION Smart powered vehicles on the road, we have delivered over 6 billion service miles (and counting) spanning a wide variety of climates, conditions, altitudes and terrains.

2 GWh installed
production capacity

Road-proven
Li-ion technology

Leading
Expertise

Extensive
Product Portfolio

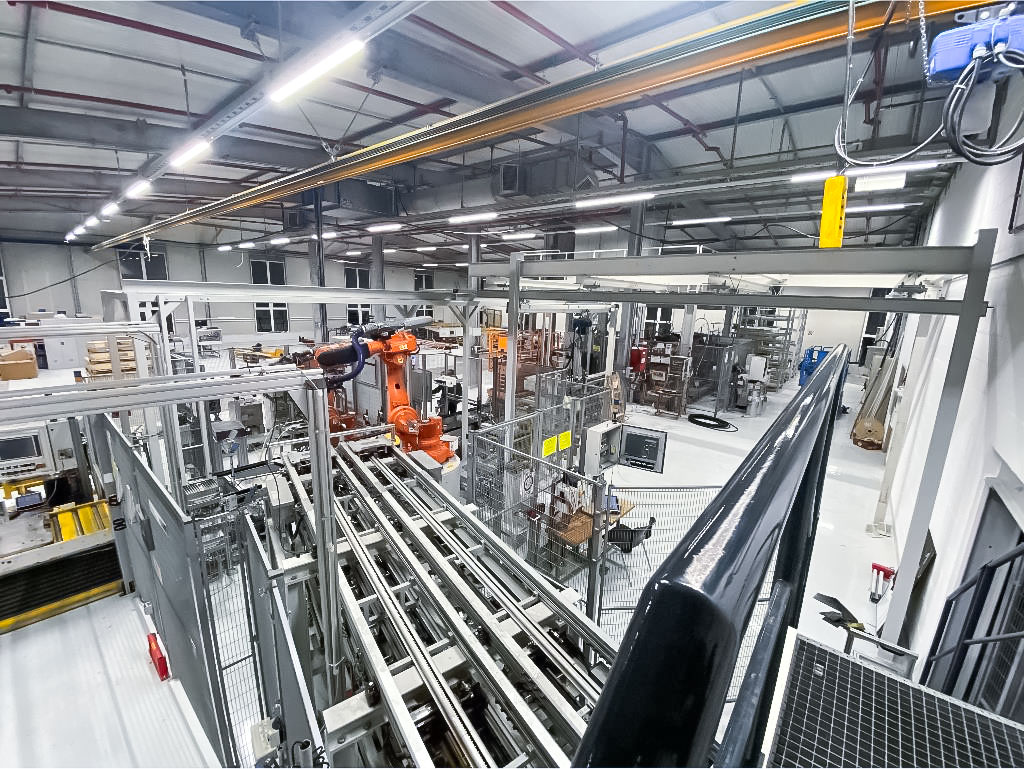

Powerful quality

over 2 GWh yearly production capability

With a high level of automation and skilled labor, our production line is designed to deliver the highest quality. The acquisition of the 2023 BMW i3 battery production line has enabled us to make additional investments in optimization. Our on-site prototyping workshop ensures innovative solutions tailored to you. With an annual production capacity of over 2 GWh, we’re ready to provide you with the battery packs that meet your needs.

Proven performance

High-Capacity battery packs for your applications

Our off-the-shelf battery packs, featuring the BMW i3 120 Ah NMC Battery Pack design, offer 42 kWh capacity with high peak discharge rates and continuous charging. Our battery packs support multiple voltage setups, including 400V and 800V configurations, and are scalable via a gateway for easy adaption to your specific needs. Backed by 1 billion miles of annual driving and a 10-year capacity warranty, you can count on proven and reliable performance. We also provide extensive support for mechanical, cooling, communication, and electrical integration to ensure seamless incorporation into your systems.

Leading expertise

Tailored battery solutions for your requirements

We are always looking for cutting-edge battery cell technologies to craft tailored solutions to meet your individual needs. Our engineering team provides comprehensive design support to ensure seamless integration into your applications. You can rest assured that our batteries are safe and efficient: through a joint venture with TÜV SÜD, we have access to leading battery testing expertise and use our specialist knowledge in Battery Management Systems (BMS) to optimize performance and safety.

Get in Touch with LION Smart

Do you have questions about our battery technology or need a tailored solution? Our team is happy to assist you!

Our locations
